Epiphone Intonation Repair

20150629_110729



I recently worked o an Epiphone acoustic guitar that had the bridge located too close to the neck. The guitar would not play in tune because of this. I could have removed the bridge, re-glued in the proper location and then have to deal with a finish touch up or I could have made a new over sized bridge from scratch. Instead I chose to route a new channel for the saddle about 3/32″ further away from the neck.This would allow the guitar to play in much better tune. You can see in the above photo the original saddle channel on the left and the new one on the right.

20150629_120926

In the above photo you can see the new saddle channel only. I filled the old one with a piece of rosewood and stained the entire bridge so it would disguise the repair as best as possible. Also to note I had to remove the piezo pickup and re-install it into the new channel.

20150629_161335

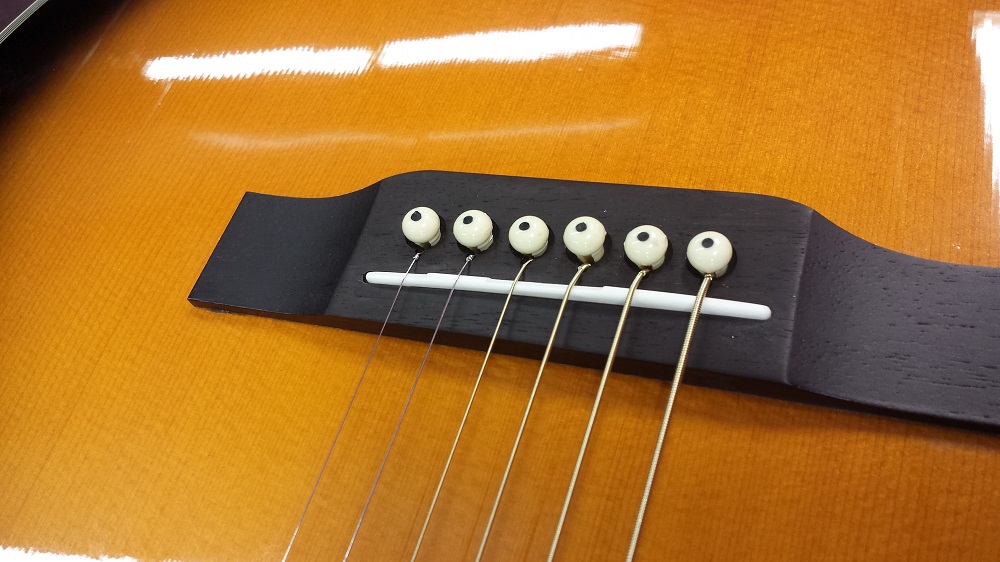

In this last photo you can see the new compensated bone saddle installed. In the end this guitar played much closer in tune. 3/32″ does not seem like much but when it comes to intonation it translates into a lot. I’m surprised that the bridge was set about 3/32″ off and that it passed QC….also that it even sold for that matter. There is always an option to get help an acoustic guitar to play closer in tune.
